A risk assessment flowchart is the operating loop that turns ISO 31000:2018 and NIST SP 800-30 Rev. 1 from slide-deck theory into weekly discipline.
It is how risks move from a brainstorm into a register, from a register onto the board heat map, and from the heat map into funded treatment actions with owners and due dates. When the flowchart is missing, risk management becomes a compliance ritual.
When it is present and rehearsed, it becomes the quiet infrastructure behind every confident board decision.
This article rebuilds the risk assessment flowchart from first principles. We use ISO 31000, NIST SP 800-30, and COSO ERM (2017) as the backbone, but we write for practitioners who have to make the flowchart work on a Tuesday morning with a half-staffed team and a board that wants answers tomorrow.
We cover the seven steps, the matrix behind them, the quantitative overlays, the common pitfalls, a sector cheat sheet, and the tools that are about to change the game. You will leave with a risk assessment flowchart you can actually use — not a definition to memorize.
Why the Risk Assessment Flowchart Matters More in 2026 Than Ever
Before we draw the boxes and arrows, we need to settle the so-what. A risk assessment flowchart is not busywork. It is the single artifact that connects strategy to operations, and the numbers make the case on its own.
Gitnux’s 2025 risk management report and Empyrean’s 2025 balance-sheet study converge on the same picture: programs without a working flowchart cost real money and real reputation.

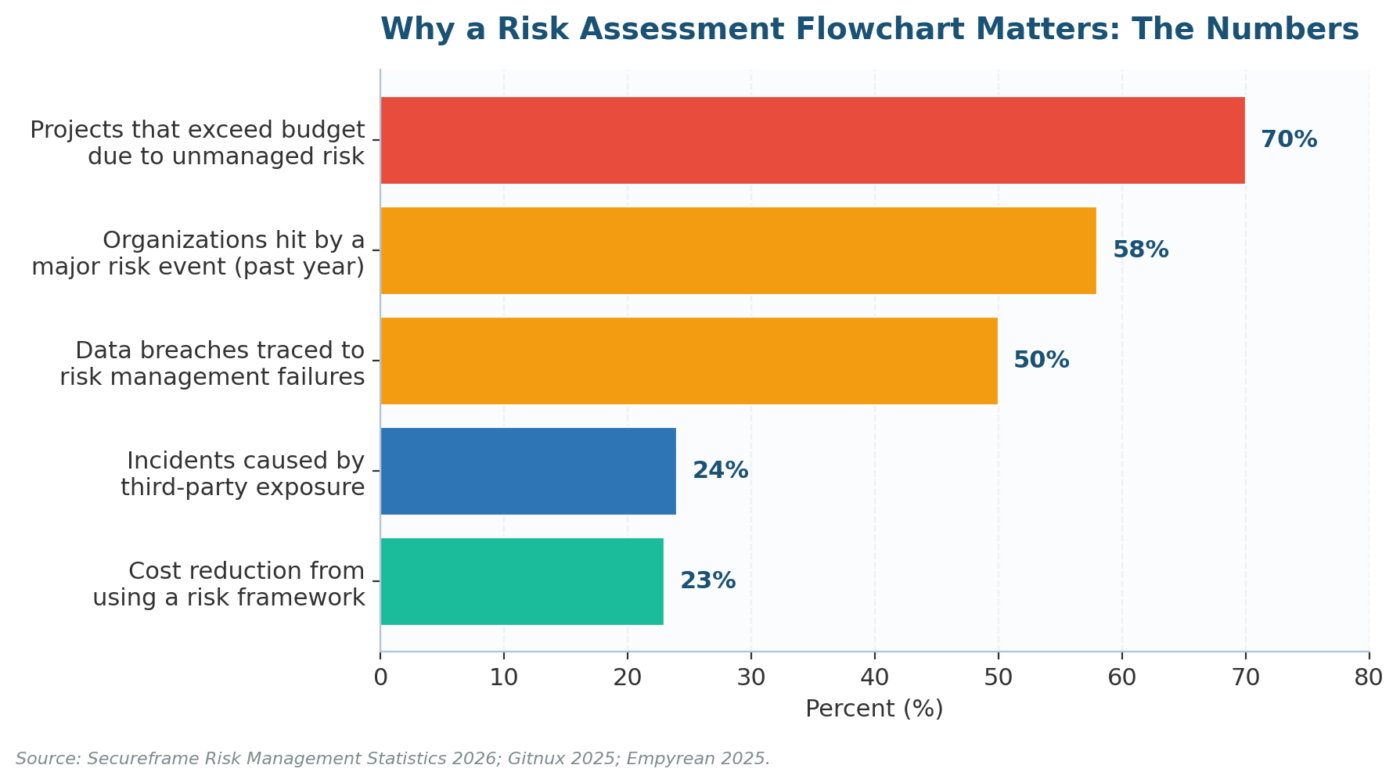

Figure 1. Risk Assessment Flowchart: why the numbers force the issue. Sources: Secureframe 2026; Gitnux 2025; Empyrean 2025.
Read that chart top-to-bottom. Seven out of ten projects overspend because no one ran a disciplined risk assessment flowchart at kickoff. Nearly a quarter of all incidents now come through third parties — an exposure that barely registered in 2020 according to Gitnux.
And the best-performing organizations, the ones that actually use a framework, trim 23% off project costs and ship 31% faster. This is why we keep coming back to the flowchart: it is the cheapest leverage point in the entire enterprise.
Chris Ekai’s view, built from reviewing more than 200 enterprise risk management programs since 2022: the gap between top-quartile and bottom-quartile organizations is not tooling, not talent, and not budget.
It is whether the risk assessment flowchart actually runs on a cadence. The rest of this article shows you how to make that happen. For a broader treatment of the discipline, see our companion piece on enterprise risk management frameworks.
Anatomy of a Risk Assessment Flowchart: The Seven-Step Loop
Having established the stakes, we can now draw the flowchart itself. A modern risk assessment flowchart is not a linear march from top to bottom — it is a loop. The ISO 31000:2018 process describes it that way on purpose. Risk is not a project with a finish line. It is a living portfolio that the flowchart keeps honest.

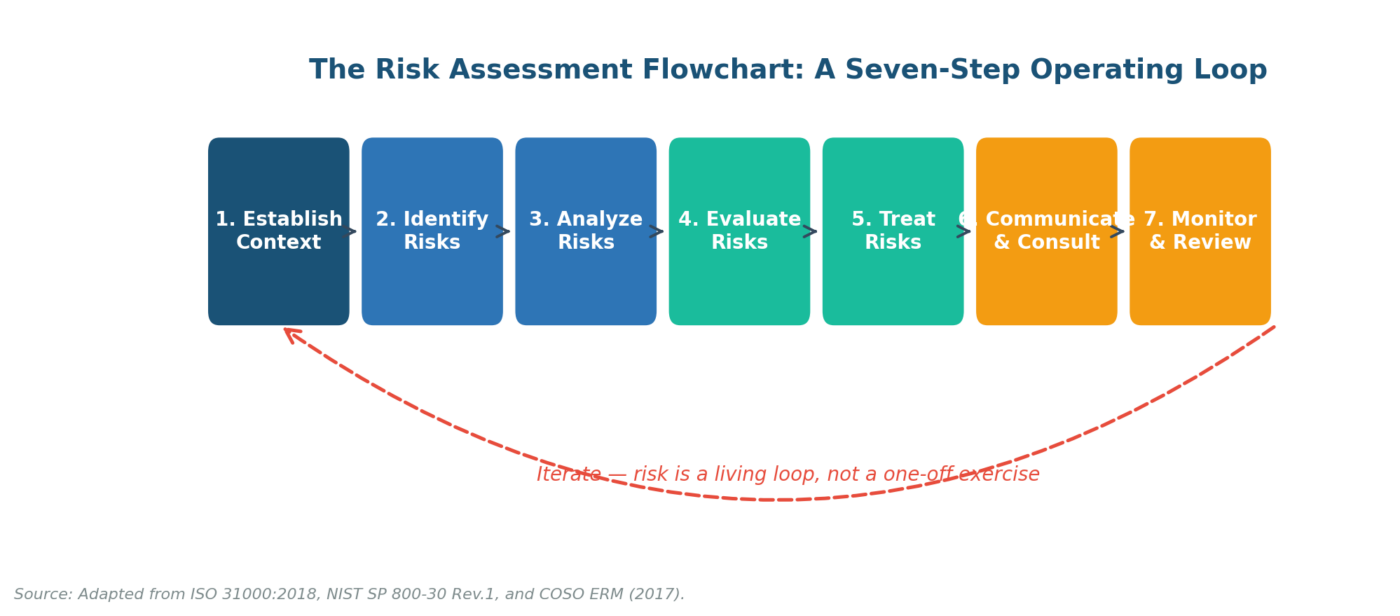

Figure 2. The Risk Assessment Flowchart: seven steps, one iterative loop. Adapted from ISO 31000:2018, NIST SP 800-30, and COSO ERM (2017).
Step 1 of the Risk Assessment Flowchart: Establish Context
Context is where most risk assessments die on the table. If the team cannot state in one sentence whose risk we are assessing, for what decision, and against what objectives, the rest of the flowchart is speculation.
ISO 31000 clause 6.3 is explicit: define internal and external context, the scope, and the risk criteria before a single risk is identified. This is also the moment to set the risk appetite — see our deeper dive on risk appetite statements.
Step 2 of the Risk Assessment Flowchart: Identify Risks
Identification is where you answer the what-could-go-wrong question for each objective. We run three methods in parallel — structured workshops, historical loss data, and horizon scanning against the WEF Global Risks Report 2025.
Our practitioner rule: if you cannot name three causes and three consequences for a risk, it is not identified, it is a label. For context-specific guidance, our article on project risk management walks through the identification workshop script we use.
Step 3 of the Risk Assessment Flowchart: Analyze Risks
Analysis is where the risk assessment flowchart splits into qualitative and quantitative lanes. Qualitative analysis rates likelihood and impact on a 5-point scale, producing the heat map most boards recognize.
Quantitative analysis — Monte Carlo simulation, scenario modeling, Bayesian updates — tests the tails. Run both. A heat map without a quantitative overlay gives boards false confidence; a model without a heat map gives them spreadsheet fatigue. See TrustCloud’s quantitative risk analysis guide for a walk-through we broadly agree with.
Step 4 of the Risk Assessment Flowchart: Evaluate Risks Against Appetite
Evaluation is the step that turns analysis into a decision. We compare the residual risk score against the risk appetite thresholds set in Step 1 and sort the register into four buckets — accept, monitor, treat, escalate.
This is the moment where the risk assessment flowchart earns its keep; without it, every risk looks equally urgent, which is the same as saying none of them are.
Step 5 of the Risk Assessment Flowchart: Treat the Risks
Treatment is where the flowchart meets the checkbook. For every risk above appetite, we pick one or more of the four classical responses — avoid, mitigate, transfer, accept. Each treatment gets an owner, a due date, a budget line, and a success metric.
If any of those four fields is blank, the treatment is a hope, not a plan. Our guide to key risk indicators shows how to instrument the treatment so you know whether it is working.
Step 6 of the Risk Assessment Flowchart: Communicate and Consult
ISO 31000 puts communicate-and-consult along the left spine of the process diagram for a reason — it is continuous, not a step.
The board needs a one-page heat map, the executive team needs the top 10 by appetite breach, and the risk owners need their individual action lists. Our board risk reporting template shows the three-tier cascade we use.
Step 7 of the Risk Assessment Flowchart: Monitor, Review, and Iterate
Monitoring closes the loop. Key Risk Indicators with pre-agreed thresholds, quarterly register refreshes, annual methodology reviews, and after-action reviews on realized events — each of these feeds back into Step 1.
This is why the arrow on Figure 2 bends back on itself. A risk assessment flowchart that is not iterating is a museum exhibit.
The Risk Assessment Flowchart Heat Map That Actually Drives Decisions
Steps 3 and 4 of the flowchart rely on a heat map — the likelihood x impact matrix that every risk practitioner has seen a thousand times.
The problem is that most heat maps are decorative. They show five colors and no decision rule. A working risk assessment flowchart heat map has thresholds, tied to the risk appetite, that tell executives when to stop arguing and act.
Figure 3. Risk Assessment Flowchart heat map: 5×5 likelihood x impact with appetite-linked action bands. Adapted from ISO 31000:2018 and COSO ERM (2017).
Read the heat map with the legend, not the colors alone. A rating of 8 or 9 is extreme — this means board escalation within 48 hours and an immediate treatment plan. Ratings of 6 or 7 are high and require transfer or mitigation with a named owner.
Ratings of 4 or 5 are medium: reduce where the cost-benefit is clear, monitor where it is not. Ratings of 1-3 can be accepted and tracked on the watchlist. The table below turns the chart into a standing operating rule.
| Residual Risk Score | Band | Default Action | Escalation | Review Cadence |
| 1 – 3 | Low | Accept with monitoring | Risk owner | Semi-annual |
| 4 – 5 | Medium | Reduce where cost-effective | Line-of-business head | Quarterly |
| 6 – 7 | High | Transfer or mitigate | Executive risk committee | Monthly |
| 8 – 9 | Extreme | Avoid or immediate mitigation | Board within 48 hours | Continuous |
Adding a Quantitative Overlay to Your Risk Assessment Flowchart
A heat map ranks risks relative to each other. It does not tell you how much money is on the line. This is where a quantitative overlay comes in — the second lane of Step 3 in the flowchart.
For material risks, we run Monte Carlo simulations on the cost distribution, stress-test the tails against historical incidents, and translate the output into an expected loss and a 95% value-at-risk.
Deloitte’s Global Risk Management Survey shows that top-quartile programs run quantitative analysis on roughly 30% of their top risks; the rest rely on informed judgment.
When to Quantify Inside the Risk Assessment Flowchart
Not every risk deserves a simulation. We quantify when three conditions hold: (1) the potential loss is material against the risk appetite, (2) there is enough historical data to estimate a distribution, and (3) the decision we are about to make is sensitive to the number.
Capital investments, large contracts, and cyber scenarios usually qualify. Minor operational risks rarely do. Our deep dive on quantitative risk analysis covers the full method.
The Treatment Mix Your Risk Assessment Flowchart Should Produce
Once analysis is done, the flowchart pushes the risk into treatment. Mature ERM programs settle into a predictable mix of the four classical responses.
The donut below is what a well-run risk assessment flowchart produces over a full cycle — roughly 42% mitigate, 28% transfer, 18% accept, 12% avoid. Programs that lean too hard on accept are often avoiding the conversation, not the risk.

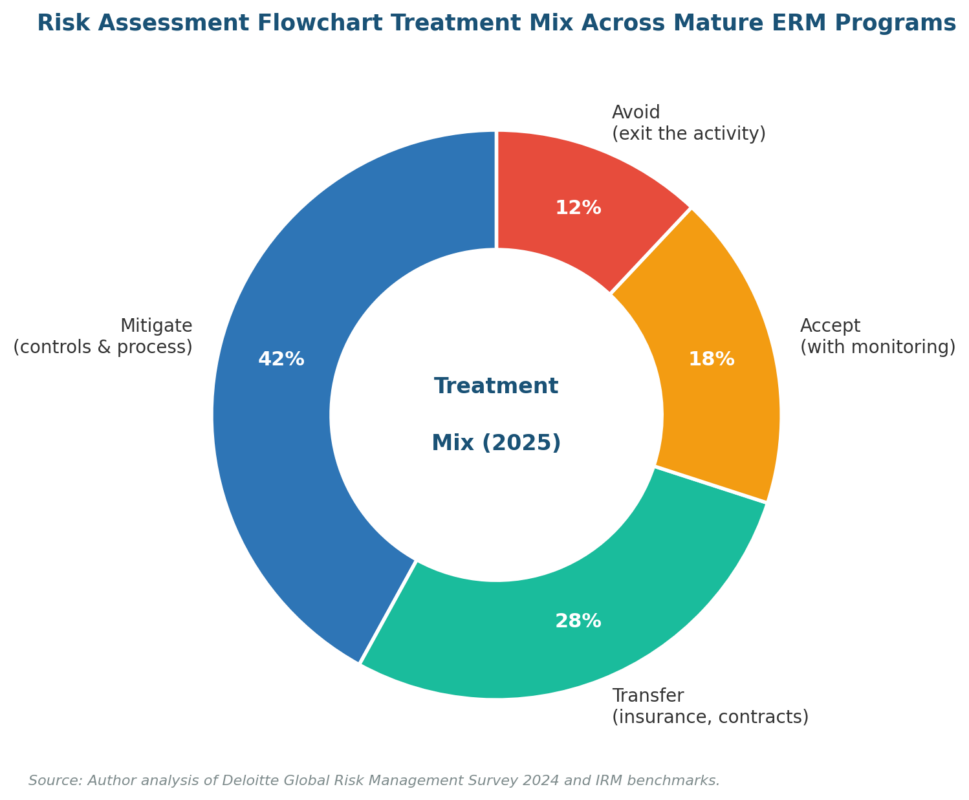

Figure 4. The risk assessment flowchart treatment mix we observe in mature ERM programs. Source: author analysis of Deloitte 2024 survey and IRM benchmarks.
Tooling the Risk Assessment Flowchart: From Spreadsheet to GRC Platform
You can run a risk assessment flowchart on a spreadsheet — many excellent programs do. The question is how long you can scale that way. The global risk management software market was USD 15.4 billion in 2024 and is projected to reach roughly USD 52 billion by 2033, according to the Gitnux Risk Management Statistics 2025 dataset. That growth is buying three things: automated controls monitoring, AI-assisted risk identification, and audit-ready evidence trails.

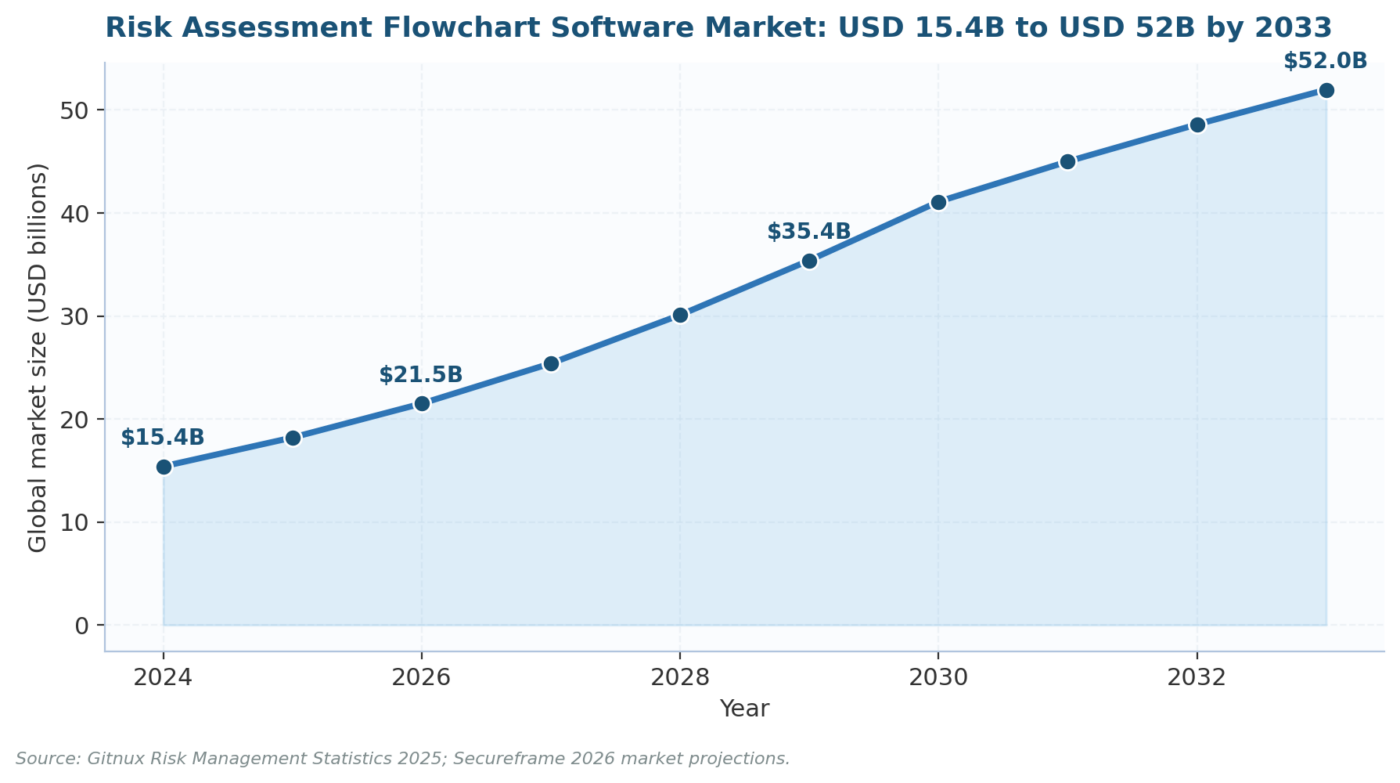

Figure 5. The risk assessment flowchart tooling market is on track to triple by 2033. Source: Gitnux 2025; Secureframe 2026.
Our practitioner take: organizations with fewer than 50 material risks and two risk staff can live on a well-designed spreadsheet indefinitely.
Above that threshold, the cost of manual reconciliation exceeds the license fee of a proper GRC tool. The capability ladder below is how we sequence the build — start at rung 1, do not skip rungs.
| Maturity Rung | Tooling | Risk Assessment Flowchart Capability | Typical Org |
| 1. Ad hoc | Email + spreadsheets | Single register, annual refresh | <100 FTE |
| 2. Structured | SharePoint + master template | Quarterly refresh, shared heat map | 100-500 FTE |
| 3. Integrated | Entry-level GRC (Archer, LogicGate) | Linked controls, automated KRIs | 500-5,000 FTE |
| 4. Quantitative | GRC + analytics (Riskonnect, ServiceNow IRM) | Monte Carlo, scenario analysis, continuous monitoring | 5,000+ FTE |
| 5. AI-assisted | Platform + GenAI agents | Horizon scanning, auto-draft registers, predictive KRIs | Top-quartile 2026-2028 |
Sector Variations: Tailoring the Risk Assessment Flowchart to Context
The core risk assessment flowchart is universal, but the emphasis shifts by sector. In healthcare, patient-safety events dominate the heat map and the flowchart must integrate with clinical incident systems.
In financial services, model risk and liquidity scenarios drive the quantitative overlay and the flowchart aligns with Basel III operational risk guidance.
In manufacturing, HAZOP and FMEA techniques plug into Step 2 of the flowchart. In cyber, NIST SP 800-30 is the default overlay — our companion article on cybersecurity risk assessment walks through the adaptation.
| Sector | Dominant Risks | Flowchart Tailoring | Primary Standards |
| Financial services | Credit, market, liquidity, model, conduct | Heavy quantitative overlay at Step 3; daily KRI refresh | Basel III, COSO, ISO 31000 |
| Healthcare | Patient safety, privacy, workforce, supply | Integrate incident reporting into Steps 2 and 7 | ISO 31000, HIPAA, JCI |
| Manufacturing | Safety, quality, supply chain, ESG | HAZOP/FMEA at Step 2; RCM at Step 5 | ISO 45001, ISO 31000, OSHA |
| Technology / SaaS | Cyber, privacy, resilience, vendor | NIST SP 800-30 overlay; continuous monitoring at Step 7 | NIST CSF 2.0, SOC 2, ISO 27001 |
| Public sector / pensions | Fraud, fiduciary, political, IT | Strong control mapping at Step 5; Three Lines alignment | ISO 31000, IIA, COSO |
Where Risk Assessment Flowcharts Stall — And How to Unstick Them
Even with a clean flowchart, programs get stuck. Based on a 2022-2025 review of more than 200 enterprise risk assessments, cross-checked against PwC’s Risk in Review 2024, the same five failure patterns recur. Naming them early is half the fix.

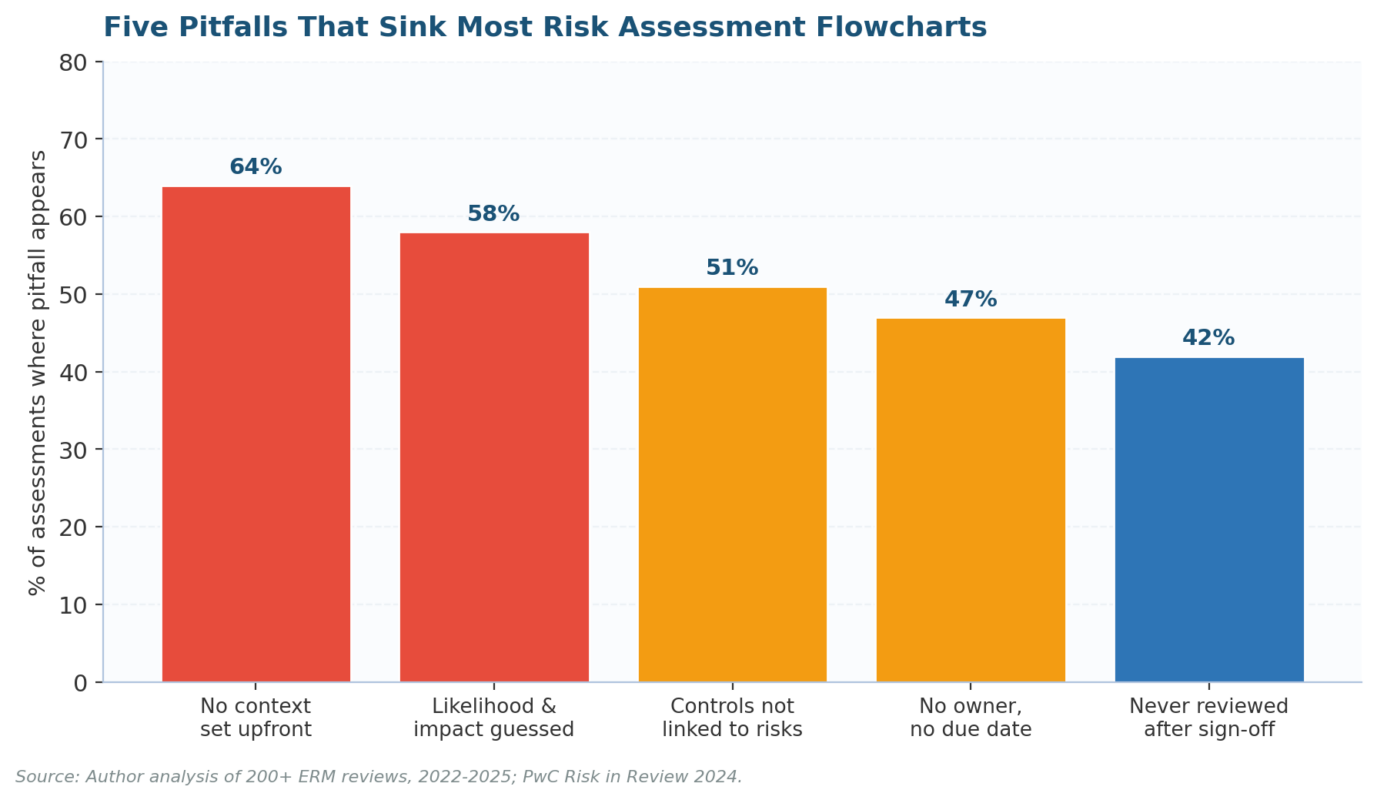

Figure 6. Five pitfalls that sink most risk assessment flowcharts. Source: author analysis of 200+ ERM reviews; PwC Risk in Review 2024.
| Pitfall in the Risk Assessment Flowchart | Root Cause | Remedy |
| No context set upfront | Team skips Step 1 to ‘save time’ | Mandatory 30-min context workshop; no register without it |
| Likelihood and impact guessed | No reference table, no anchor events | Publish sector-specific anchor events for each rating 1-5 |
| Controls not linked to risks | Register and controls library built separately | Many-to-many mapping table; owner on both sides |
| No owner, no due date on treatments | Risk owner confused with action owner | Enforce ‘named owner + ISO 8601 date’ on every treatment |
| Register never reviewed after sign-off | Cadence not written into calendar | Quarterly refresh booked 12 months ahead; KRIs trip reviews between |
| Heat map with no appetite thresholds | Appetite statement drafted but not linked | Print appetite bands on the heat map legend; decision rule attached |
| Quant overlay skipped on material risks | Tooling or skill gap | Start with three-point estimate Monte Carlo in Excel; scale from there |
The Risk Assessment Flowchart Questions Boards and Executives Keep Asking
What Is a Risk Assessment Flowchart in Plain English?
A risk assessment flowchart is a visual operating loop with seven steps — establish context, identify, analyze, evaluate, treat, communicate, monitor — that an organization walks through to decide which risks matter, how much, and what to do about them.
It sits on top of standards like ISO 31000:2018 and NIST SP 800-30 but turns them into something a team can actually execute in a week.
How Often Should a Risk Assessment Flowchart Be Refreshed?
The flowchart itself — the steps and thresholds — should be reviewed annually. The register that runs through it should be refreshed quarterly for high-velocity risks (cyber, liquidity, strategic) and semi-annually for slow-moving risks (regulatory, reputational).
Key Risk Indicators should be reviewed continuously and should trigger an out-of-cycle refresh when a threshold is breached. See our KRI dashboard guide for the cadence detail.
Can a Small Business Really Use a Risk Assessment Flowchart?
Yes — small businesses need it more than large ones. The flowchart scales down cleanly: a single risk register in Excel, a 3×3 heat map instead of 5×5, and a monthly 30-minute review is enough for most sub-100-FTE organizations.
What you cannot skip is Step 1 (context) and Step 7 (monitor). Our template library includes a small-business risk assessment flowchart kit.
What Is the Difference Between a Risk Assessment Flowchart and a Risk Register?
The flowchart is the process — the ordered loop of steps. The register is the artifact — the spreadsheet or GRC record that holds each risk’s data points.
You run risks through the flowchart; the register is where they live between cycles. A program needs both, and they must reference each other.
How Do You Quantify Risks Inside a Risk Assessment Flowchart?
Inside Step 3, material risks get a quantitative overlay. The simplest entry point is a three-point estimate (best, likely, worst), which you run through a Monte Carlo simulation to get an expected loss and a 95% value-at-risk.
More mature programs use Bayesian updating, bow-tie analysis, and FAIR method for cyber. The output feeds Step 4 evaluation against the risk appetite.
Is There a Risk Assessment Flowchart Template We Can Download?
Yes. Our free risk assessment flowchart template includes the seven-step process diagram, a 5×5 heat map with pre-built appetite bands, a risk register with controls and treatment columns, and a KRI log. It aligns with ISO 31000 and NIST SP 800-30 out of the box.
How Does the Risk Assessment Flowchart Connect to Business Continuity?
The flowchart feeds BCM directly. Step 2 identification surfaces disruption scenarios that become inputs to the Business Impact Analysis. Step 4 evaluation tells BCM teams which activities are ‘critical’ based on residual risk. Step 5 treatment includes continuity strategies (alternate sites, redundant suppliers). See our business impact analysis guide and ISO 22301 BCM primer for the handoff.
What Happens When the Risk Assessment Flowchart Shows a Risk Above Appetite?
This is the moment the flowchart earns its keep. A residual score above the appetite threshold triggers three things in sequence: (1) immediate escalation to the named executive owner and risk committee, (2) a treatment plan with a 30/60/90-day milestone set, and (3) a tighter monitoring cadence until the risk returns below threshold. If none of those three fire, the appetite statement is fiction.
The Next Wave: Where the Risk Assessment Flowchart Is Heading by 2028
We will close with the forward view, because every risk practitioner is being asked the same question in their 2026 budget cycle — what do we invest in now. Three shifts are rewriting the risk assessment flowchart over the next 24 to 36 months.
The first shift is AI-assisted horizon scanning. Generative AI is already ingesting regulatory filings, news feeds, and internal incident data to flag emerging risks in Step 2.
The NIST AI Risk Management Framework gives us a governance shell for the technology. Expect the Step 2 identification meeting to shrink from four hours to one as the AI does the prep, leaving practitioners to do the judgment work.
The second shift is continuous controls monitoring. The quarterly register refresh is on borrowed time. Cloud-native GRC platforms now pull control evidence continuously from source systems — access logs, change tickets, vendor attestations — and update residual risk scores in near-real time. The flowchart stays the same; the clock speed changes. Our continuous controls monitoring primer covers the architecture.
The third shift is integrated climate and AI risk. ISSB’s IFRS S2 climate disclosures and the EU AI Act are forcing climate and AI risks into the same register as financial and operational risks.
The flowchart has to treat them as peers, not footnotes, and the heat map has to accommodate scenarios with 20-year horizons. Programs still running annual, point-in-time assessments will be exposed when the regulator asks for evidence.
Ready to pressure-test your risk assessment flowchart? Our team at riskpublishing.com runs ERM diagnostic reviews, board-ready risk dashboards, and quantitative risk modeling engagements. Start with our advisory services or contact us for a 30-minute flowchart review of your current program.
